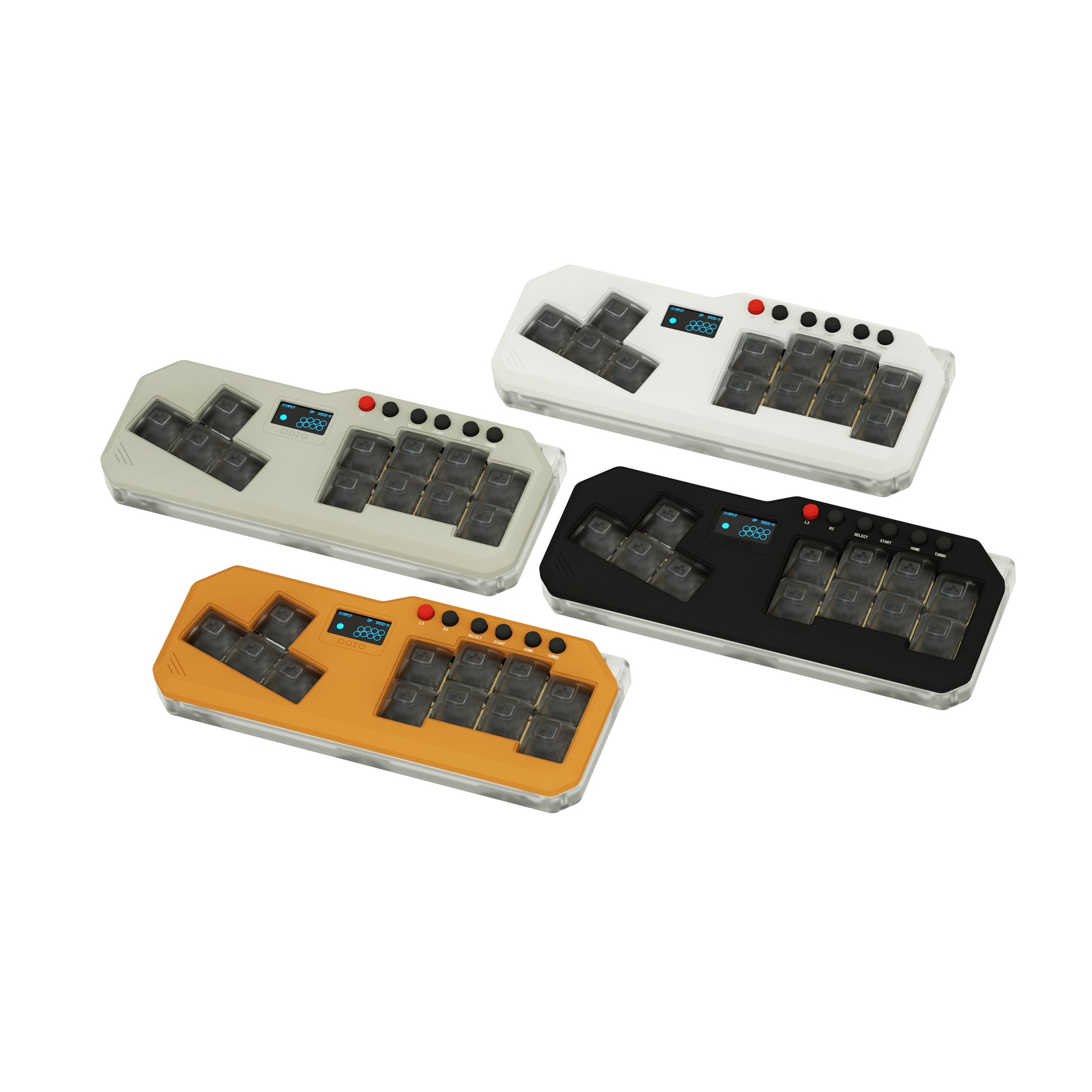

DOIO HITPAD Mini Series Instructions

Firmware: GP2040-CE

Product Link: Here

Manual: Link

Firmware Update: Link

You will need 'Magicboots' to make the device compatiable with PS4 and PS5

To select an input mode,

Press and hold one of the following buttons before connecting the device.

1P-PS3 /D-Input  (RaspberryPi/Android)

1K-Nintendo Switch

2K-PC /X-Input  (Windows/Steam)

2P-PS4 Mode

*PS4 and PS5 require Magicboots or other converters, Magicboots MUST be purchased separately.

SELECT+START+DOWN ARROW = Visual helmet mode(DP)

SELECT+START +LEFT ARROW = Left-analog stick

SELECT+ START+RIGHT ARROW = Right analog stick


SOCD Mode

HOME + START+DOWN ARROW = Neutral (up+down=middle, left+right=middle )

HOME +  START+UP ARROW = SOCD1 (up+down=up, left+right = middle)

HOME+START+LEFT ARROW= Last input priority (post-override)

SELECT+ START+1P = Next Animation

SELECT + START +1K = Previous Animation

SELECT+ START +2P = Brightness Up

SELECT+START+2K = Brightness Down

SELECT+ START +3P =Switch to Next Lighting Preset

SELECT+ START +3K = Switch to Previous Lighting Preset

SELECT+ START+4P = Next Key Triggers Light Color

SELECT+ START+4K = Previous Key Triggers Light Color

Press and hold the TURBO button, then press the button you want to set for continuous shooting. Once set, you can cancel rapid fire by repeating the same action.

Rapid fire can be set for 1P, 2P, 3P, 4P, 1K, 2K, 3K, or 4K, across 8 buttons.

The firing rate can be adjusted within the range of 1 to 60 shots per second (individual button firing rate adjustment is not supported).

Hold the TURBO button and press the UP key to increase the firing rate, or hold the TURBO button and press the DOWN key to decrease it.

Even if the power is turned off, the set firing rate will be saved, but the rapid fire button status will be cleared.

Click on "Settings" and select "Input Mode" (choose PS4).

On the right side, select "Arcade Joystick" and click "Save."

Click on "Configuration" and select Add-Ons Configuration."

Enable "PS Direct Authentication" by selecting D+ as 26 and D- as 27 and click "Save."

Reconnect the Type-C cable, then connect the MagicBoots for PS5 use.

Click on "Settings" and select "Input Mode" (choose Keyboard), then click "Save."

Click on "Configuration" and select "Keyboard Mapping."

Use the form below to reconfigure your button-to-key mapping, Then click ”Save“ button.

To activate the keyboard switch, reconnect the Type-C cable.

Click on "Configuration" and select "Custom LED Themes."

Click the "Enable" button, then set the colors for Normal and pressed lights by clicking the corresponding buttons.

Click "Save," then reconnect the Type-C cable to apply the changes.

Access the debug page, click the "Settings" at the top.

Under "Input Mode", select "PS4" from the dropdown，and select the "Controller" option on the right side, click “Save”.

Click on "Configuration" and select Add-Ons Configuration."

Find “PS4 Mode” and “Enable” it, Upload these 3 files it needs, then click “verify & Save”.

Slide to the bottom of the page, click “Save”, then reconnect to the PS4 console, the 8 minutes disconnected issue will be solved.

* Files are not provided.
